Magnetic Separation Rack

Rapid and efficient magnetic bead-based separation of samples in 0.2 ml tubes

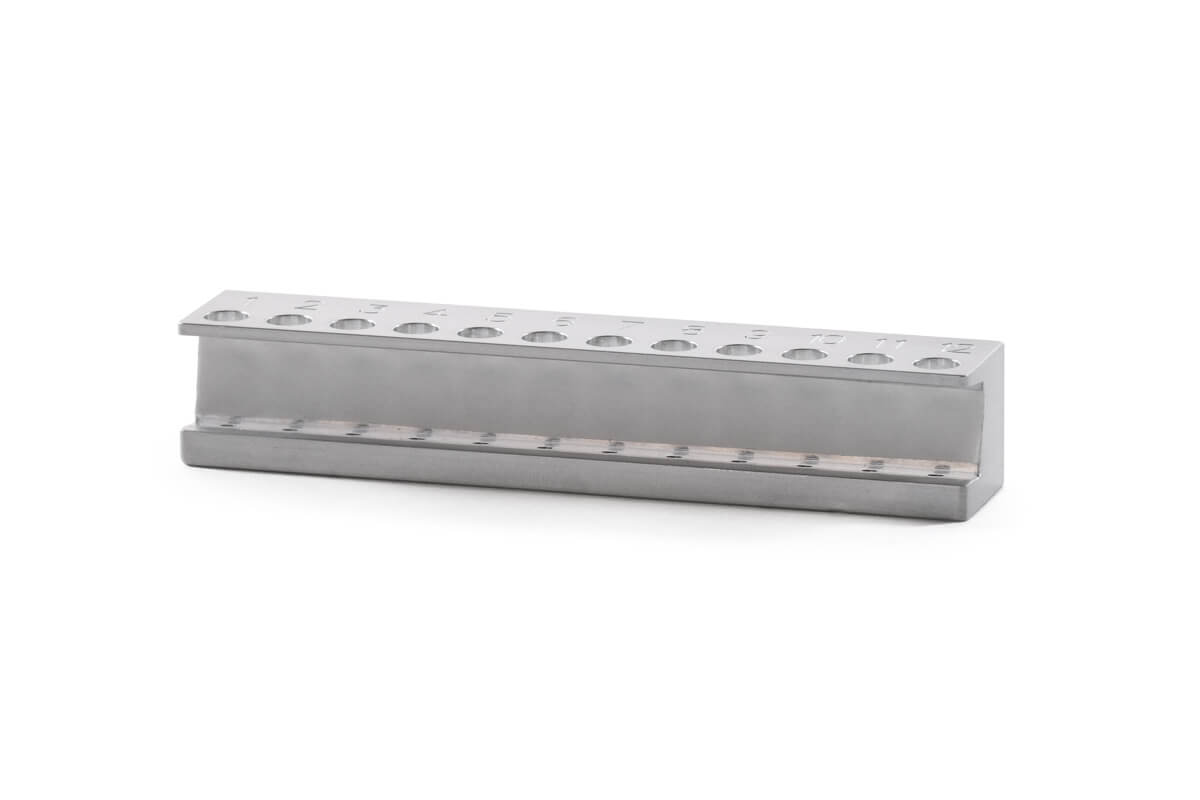

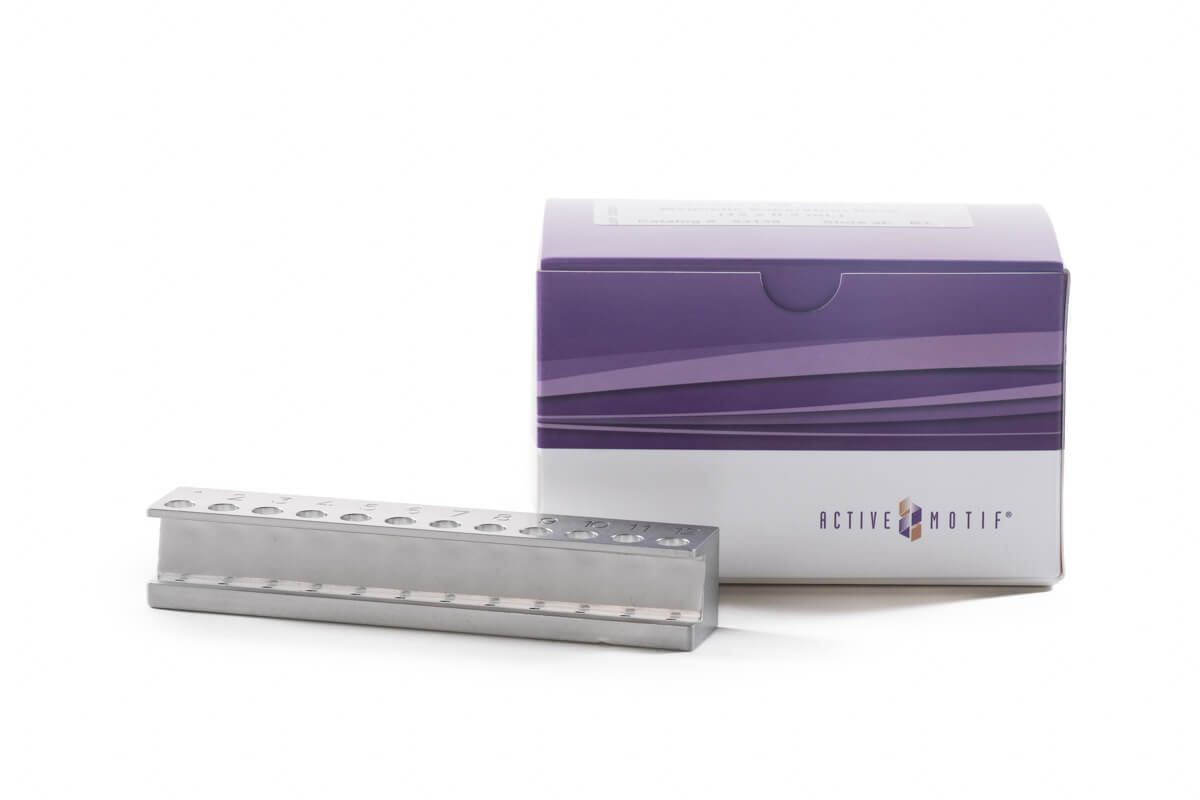

Magnetic Separation Rack (12 x 0.2 mL) Overview




Related Products:

The 12 x 0.2 mL Tube Magnetic Separation Rack is designed for rapid and efficient magnetic bead-based separation of samples in 0.2 mL PCR tubes or strip tubes. Ideal for workflows in nucleic acid purification, immunoprecipitation, and other magnetic bead-based applications including ATAC-Seq, CUT&RUN, and CUT&Tag.

Applications

  • DNA/RNA purification.
  • Antibody or protein binding assays.
  • Cell sorting and separation.
  • Magnetic bead cleanup in PCR and sequencing workflows.

Key Features:

  • Capacity: Accommodates up to 12 individual 0.2 mL PCR tubes or PCR strip tubes.
  • Material:
    • Rack: High-quality aluminum metal.
    • Magnets: Strong neodymium rare-earth magnets for fast and efficient bead capture.
  • Magnet Placement: Precisely aligned magnets for uniform separation.
  • Compatibility: Compatible with most 0.2 mL PCR tubes and strip tubes.
  • Ease of Use: Compact design for benchtop applications, with easy tube access.


Specifications

  • Number of Positions: 12 individual wells (one row of 12).
  • Tube Compatibility: Standard 0.2 mL PCR tubes or strips.
  • Magnet Type: Neodymium
  • Temperature Range: -20°C to 70°C.
  • Size: 20 mm (h) x 20 mm (w) x 110 mm (l)
  • Weight: 102 g


Operating Instructions

  1. Insert 0.2 mL PCR tubes containing your sample and magnetic beads into the rack.
  2. Place the rack on a stable surface.
  3. Allow beads to migrate to the magnet side (~1-2 minutes).
  4. Carefully aspirate the supernatant without disturbing the bead pellet.
  5. Perform washes as required, repeating steps 3 and 4.

Maintenance and Care

  • Clean with mild detergent and water.
  • Avoid blunt-force impact, to avoid dislodging position of magnets.
  • Keep away from extreme temperatures.


Name Format Cat No. 価格 (税抜)
Magnetic Separation Rack (12 x 0.2 ml) 1 stand 53138 ¥55,500 Buy
